mz48w gas gate valve product details
mz48w gas gate valve produced and sold by woci valve group, suitable medium: blast furnace gas, coke oven gas, producer gas, water gas, oil gas and other sewage gas, and liquefied gas, natural gas, gas and other clean gas mine. mainly used in gas, metallurgy, coking and other industries gas and city gas pipeline network.
mz48w gas gate valve main components
part name | valve for the valve cover, gate | valve stem | stem nut | filler | gasket |
material | grey cast iron | carbon steel | ball ink | oil asbestos packing | rubber asbestos board |
mz48w gas gate valve performance specifications
model | nominal pressure mpa | test pressure | operating temperature ℃ | suitable media | |
strength (water) mpa | seal (water) mpa | ||||
mz48w | 0.15 | 0.25 | 0.165 | -10 to 120 | coke oven gas, producer gas, water gas, oil gas and so on |
mz48w | 0.2 | 0.3 | 0.22 | ||
mz48w | 0.25 | 0.375 | 0.275 | -10 to 120 | gas, natural gas |

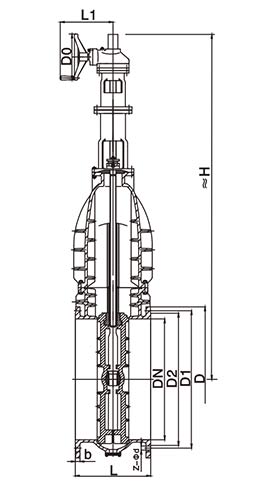

mz48w gas gate valve and connection dimensions
dn | d | d1 | d2 | z - d | l | b | f | do | h | h1 | a * b | weight kg | ||||
6 class | 10 bar level | 6 class | 10 bar level | 6 class | 10 bar level | 6 class | 10 bar level | |||||||||
150 | 265 | 285 | 225 | 240 | 202 | 212 | 8-17.5 | 8-22 | 350 | 26 | 3 | 280 | 550 | 140 | 330 * 260 | 132 |
200 | 320 | 340 | 280 | 295 | 258 | 268 | 8-17.5 | 8-22 | 400 | 28 | 3 | 320 | 600 | 160 | 930 * 280 | 196 |
250 | 375 | 395 | 335 | 350 | 312 | 320 | 12-17.5 | 12-22 | 450 | 28 | 3 | 320 | 750 | 230 | 470 * 310 | 301 |
300 | 440 | 445 | 395 | 400 | 365 | 370 | 12-22 | 12-22 | 500 | 28 | 4 | 400 | 810 | 300 | 520 * 350 | 462 |
350 | 490 | 505 | 445 | 460 | 415 | 430 | 12-22 | 16-22 | 550 | 30 | 4 | 400 | 950 | 340 | 570 * 380 | 680 |
400 | 540 | 565 | 495 | 515 | 465 | 482 | 16-22 | 16-26 | 406 | 32 | 4 | 640 | 1010 | 430 | 640 * 390 | 768 |
450 | 595 | 615 | 550 | 565 | 520 | 532 | 16-22 | 20-26 | 432 | 32 | 4 | 640 | 1070 | 465 | 690 * 410 | 898 |
500 | 645 | 670 | 600 | 620 | 570 | 585 | 20-22 | 20-26 | 457 | 34 | 4 | 800 | 1140 | 490 | 800 * 460 | 1362 |
600 | 755 | 780 | 705 | 725 | 670 | 685 | 20-22 | 20-30 | 508 | 36 | 5 | 800 | 1380 | 540 | 930 * 500 | 1706 |
700 | 860 | 895 | 810 | 840 | 775 | 800 | 24-26 | 24-30 | 610 | 40 | 5 | 1000 | 1560 | 590 | 1070 * 550 | 1846 |
800 | 975 | 1015 | 920 | 950 | 880 | 905 | 24-30 | 24-33 | 660 | 44 | 5 | 1000 | 1760 | 680 | 1190 * 580 | 2760 |
900 | 1075 | 1115 | 1020 | 1050 | 980 | 1005 | 24-30 | 28-33 | 711 | 46 | 5 | 1200 | 1930 | 760 | 1280 * 570 | 3760 |
1000 | 1175 | 1230 | 1120 | 1160 | 1080 | 1110 | 28-30 | 28-36 | 811 | 50 | 5 | 1200 | 1960 | 800 | 1390 * 580 | 4400 |
1200 | 1405 | 1455 | 1340 | 1380 | 1295 | 1330 | 32-33 | 32-39 | 960 | 56 | 5 | 1400 | 2440 | 840 | 1680 * 780 | 6787 |
1400 | 1630 | 1675 | 1560 | 1590 | 1510 | 1530 | 36-36 | 36-42 | 960 | 62 | 5 | 1400 | 3020 | 1000 | 1900 * 850 | 8540 |
1600 | 1830 | 1915 | 1760 | 1820 | 1710 | 1750 | 40-36 | 40-48 | 1160 | 68 | 5 | 1600 | 3627 | 1250 | 2360 * 980 | 12480 |
1800 | 2045 | 2115 | 1970 | 2020 | 1920 | 1950 | 44-39 | 44-48 | 1160 | 70 | 5 | 1600 | 4107 | 1357 | 2740 * 1108 | 16790 |
