pz573x bevel gear slurry valve basic information
pz573x bevel gear slurry valve produced and sold by woci valve group has simple and compact structure, reasonable design, lightweight materials, sealing is reliable, flexible and convenient operation, small volume, smooth channel, small flow resistance, light weight and easy to install, easy to remove, can in the work pressure 1.0 mpa to 2.5 mpa, in the case of temperature - 29-650 ℃ to work normally.

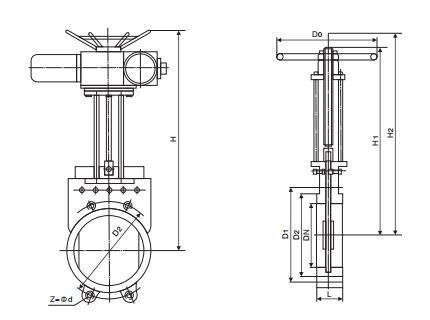

pz573x bevel gear slurry valve main shape and connection dimension
mpa | dn | l | d | d1 | h | n-m |
1.0 | 50 | 40 | 125 | 95 | 425 | 4-m16 |
65 | 40 | 145 | 110 | 475 | 4-m16 | |
80 | 50 | 160 | 127 | 505 | 8-m16 | |
100 | 50 | 180 | 149 | 580 | 8-m16 | |
125 | 50 | 210 | 174 | 655 | 8-m16 | |
150 | 60 | 240 | 199 | 745 | 8-m20 | |
200 | 60 | 295 | 250 | 890 | 8-m20 | |
250 | 70 | 350 | 310 | 1125 | 12-m20 | |
300 | 70 | 400 | 360 | 1325 | 12-m20 | |
350 | 96 | 460 | 416 | 1480 | 16-m20 | |
400 | 100 | 515 | 466 | 1645 | 16-m24 |
