H44J Rubber lined swing check valve

application of h44j rubber lined swing check valve

h44j rubber lined swing check valve produced and sold by woci valve (shanghai) co., ltd. is specially used to control strongly corrosive media. the inner cavity surface of the valve body is covered with various fluoroplastics, which has the characteristics of high strength and good corrosion resistance. it is applicable to different working temperatures and fluid pipelines to prevent one-way opening and closing of medium countercurrent on various pipelines or equipment.

h44j rubber lined swing check valve test

lining layer: electric spark detection

the test and inspection shall be conducted according to gb / t13927 standard

nominal pressure: pn valve body: pn × 1.5 sealing: pn × one point one

h44j rubber lined swing check valve main parts and materials

upper valve body: cast iron, nodular cast iron, carbon steel lower valve body: cast iron, nodular cast iron, carbon steel lining: fluoroplastic

disc: carbon steel fully coated with fluoroplastic

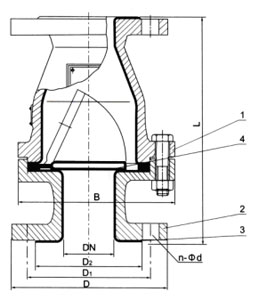

h44j rubber lined swing check valve parts list

1. upper valve body, 2 lower valve body, 3 valve body lining, 4 valve disc

main dimensions of h44j rubber lined swing check valve
