J41F46 Fluorine Lined Globe Valve

j41f46 fluorine lined globe valve product description

j41f46 fluorine lined globe valve produced and sold by woci valve group for a variety of concentrations of -50 ~ 150 ℃ aqua regia, acid, hydrochloric acid, hydrofluoric acid and a variety of organic acids, acids, strong oxidants, but also for a variety of concentrations of strong alkali organic solvents and other corrosive gases, liquid media used on the pipeline.

j41f46 fluorine lined globe valve product usage

j41f4 lined with fluorine plastic globe valve is designed to control strong corrosive medium, the body cavity surface covered with a variety of fluoroplastic options for different operating temperatures and fluid lines. high strength, good corrosion resistance.

j41f46 fluorine lined globe valve test

lining: edm testing and testing according to gb / t13927 standard nominal pressure: pn body: pn × 1.5 seal: pn × 1.1

j41f46 fluorine lined globe valve main material

body: cast iron, carbon steel stainless steel bonnet: cast iron, carbon steel stainless steel lining: fluoroplastic flap: carbon steel, stainless steel, completely coated fluoroplastic stem: carbon steel, stainless steel, partially coated fluoroplastic handwheel: cast iron , carbon steel

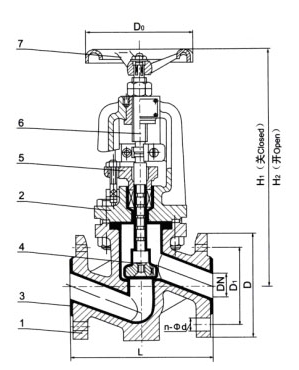

j41f46 fluorine lined globe valve parts list

1, valve body, 2, valve cover 3, valve body 4, valve flap 5, pressure cover 6, valve stem 7, handle
